FlatScope 2D optical measurement system

Auto sales finally got back above pre-recession levels in 2014 with August sales reaching a seven-year high. After six long years, sales levels have matched 2007’s pace. More importantly, several research groups expect 2015 continue to grow. Today’s Motor Vehicles allows marketers direct access to this healthy industry with continued growth.

TMV Staff 1 min
werth-flatscope-2d-measuring

May 26, 2017

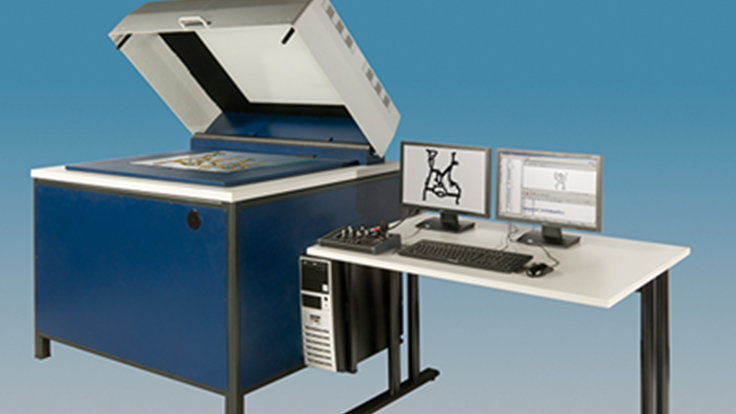

The Werth FlatScope offers rapid optical measurement of 2D components with high precision requirements. The constant measurement plane, automatic detection of component orientation, the raster scanning, and OnTheFly operating modes minimize cycle times. With the raster scanning operating mode, the measurement range is not limited to the field of view of the optics. A measurement range of 400mm x 200mm can be measured at a resolution of up to 100 megapixels in just a few seconds. The machine is available with a measurement ranges up to 650mm x 600 mm.

The Werth Flatlight telecentric backlight light system is mounted in the machine hood. The controller is integrated in the machine with thermal insulation to save space in a shop floor environment.
